Power Clamp
Power Clamp

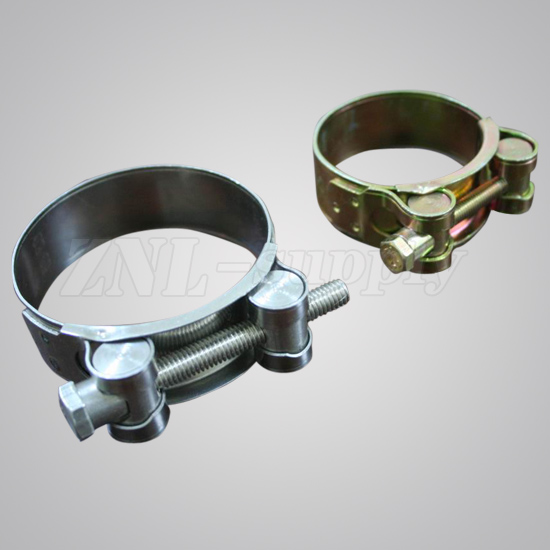

Product name：Power Clamp
Item：
Details：
Material
W1: All material are zinc plated
W4: Band,housing and screw are stainless steel
  The stainless steel 301，304 can be choosed
Order No. Size(mm) Screw Screw Length(mm) Band Thickness
ZNLPC01 17-19 M6 40 0.6
ZNLPC02 20-22 M6 40 0.6
ZNLPC03 23-25 M6 40 0.6
ZNLPC04 26-28 M6 40 0.6
ZNLPC05 29-31 M6 50 0.6
ZNLPC06 32-35 M6 50 0.8
ZNLPC07 36-39 M6 50 0.8
ZNLPC08 40-43 M6 50 0.8
ZNLPC09 44-47 M6 60 0.8
ZNLPC10 48-51 M6 60 1.2
ZNLPC11 52-55 M6 60 1.2
ZNLPC12 56-59 M6 60 1.2
ZNLPC13 60-63 M6 60 1.2
ZNLPC14 64-67 M6 60 1.2
ZNLPC15 68-73 M8 75 1.2
ZNLPC16 74-79 M8 75 1.5
ZNLPC17 80-85 M8 75 1.5
ZNLPC18 86-91 M8 75 1.5
ZNLPC19 92-97 M8 75 1.5
ZNLPC20 98-103 M8 80 1.5
ZNLPC21 104-112 M8 80 1.5
ZNLPC22 113-121 M8 80 1.5
ZNLPC23 122-130 M8 80 1.5
ZNLPC24 131-139 M10 90 1.5
ZNLPC25 140-148 M10 90 1.7
ZNLPC26 149-161 M10 90 1.7
ZNLPC27 162-174 M10 90 1.7
ZNLPC28 175-187 M10 105 1.7
ZNLPC29 188-200 M10 105 1.7
ZNLPC30 201-213 M10 105 1.7
ZNLPC31 214-226 M10 105 1.7
ZNLPC32 227-239 M10 105 1.7
ZNLPC33 240-252 M10 105 1.7
