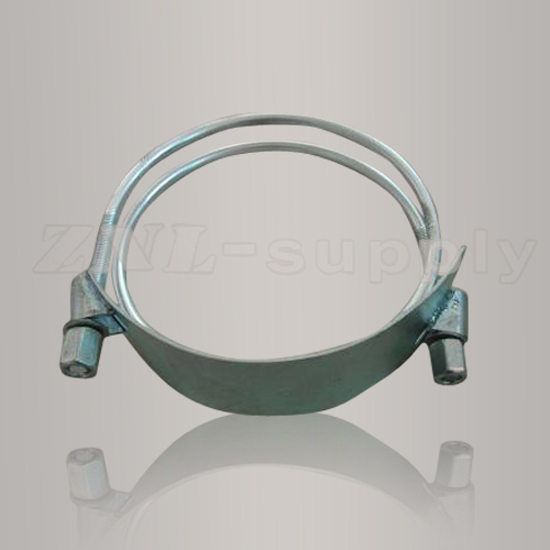

Spiral Double Bolt Clamp
Spiral Double Bolt Clamp
Product name：Spiral Double Bolt Clamp
Item：
Details：
Material:All material are carbon steel,white zinc plated
Order No. Size（In.) Size(mm) Wire Size Screw Nut
ZNLSD01 1-1/2 35-46 4.20 M5X45 14*8
ZNLSD02 2 46-65 4.20 M5X45 14*8
ZNLSD03 2-1/2 56-76 4.20 M6X55 17*10
ZNLSD04 3 71-90 6.80 M8X70 17*19.5
ZNLSD05 4 95-118 6.80 M8X70 17*19.5
ZNLSD06 5 120-143 8.70 M10X70 17*19.5
ZNLSD07 6 145-175 8.70 M10X120 17*19.5
ZNLSD08 8 198-229 8.70 M10X120 17*19.5
ZNLSD09 10 265-285 8.70 M10X120 17*19.5
