Worm Gear Clamp |
 |

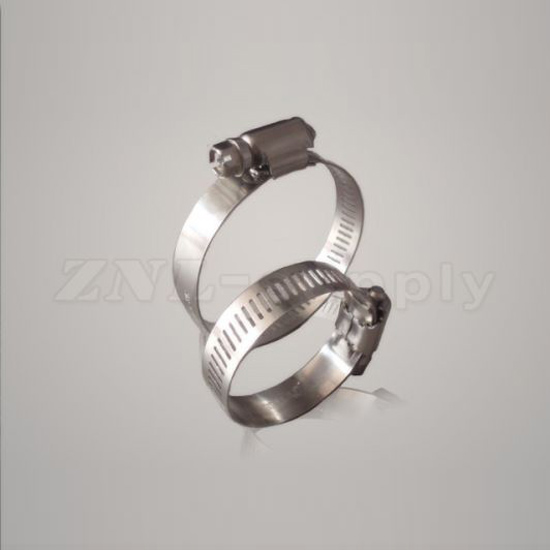

| Product name：Worm Gear Clamp |
| Item：12.7mm Band width |
| Details： |
| 1. One piece housing design • Provides uniform and high strength clamping force 1/2'band width |
| 2. Clamp seals hose 360° to prevent leakage • Corrosion and chemical-resistant |
|
| Materials: |
|
|
|
|
|
|
| W1: |
Zinc plated |
|
|
|
|
|
| W2: |
Band and housing are stainless steel,screw is zinc plated |
|
|
| W4: |
Band,housing and screw are stainless steel |
|
|
|
| |
The stainless steel 301,304,316 can be choosed |
|
|
|
| Order no. |
Min(In.) |
Max(In.) |
|
|
|
|
| ZNLAT01 |
3/8 |
7/8 |
|
|
|
|
| ZNLAT02 |
7/16 |
1 |
|
|
|
|
| ZNLAT03 |
9/16 |
1-1/16 |
|
|
|
|
| ZNLAT04 |
9/16 |
1-1/4 |
|
|
|
|
| ZNLAT05 |
11/16 |
1-1/2 |
|
|
|
|
| ZNLAT06 |
3/4 |
1-3/4 |
|
|
|
|
| ZNLAT07 |
1-1/16 |
2 |
|
|
|
|
| ZNLAT08 |
1-5/16 |
2-1/4 |
|
|
|
|
| ZNLAT09 |
1-9/16 |
2-1/2 |
|
|
|
|
| ZNLAT10 |
1-13/16 |
2-3/4 |
|
|
|
|
| ZNLAT11 |
2-1/16 |
3 |
|
|
|
|
| ZNLAT12 |
2-5/16 |
3-1/4 |
|
|
|
|
| ZNLAT13 |
2-9/16 |
3-1/2 |
|
|
|
|
| ZNLAT14 |
2-13/16 |
3-3/4 |
|
|
|
|
| ZNLAT15 |
3-1/16 |
4 |
|
|
|
|
| ZNLAT16 |
3-5/16 |
4-1/4 |
|
|
|
|
| ZNLAT17 |
2-1/2 |
4-1/2 |
|
|
|
|
| ZNLAT18 |
3 |
5 |
|
|
|
|
| ZNLAT19 |
3-1/2 |
5-1/2 |
|
|
|
|
| ZNLAT20 |
4 |
6 |
|
|
|
|
| ZNLAT21 |
4-1/2 |
6-1/2 |
|
|
|
|
| ZNLAT22 |
5 |
7 |
|
|
|
|
| ZNLAT23 |
5-3/4 |
7-3/4 |
|
|
|
|
| ZNLAT24 |
6-1/2 |
8-1/2 |
|
|
|
|
| ZNLAT25 |
2 |
10 |
|
|
|
|
| ZNLAT26 |
1-3/4 |
10-3/4 |
|
|
|
|
| ZNLAT27 |
9-1/2 |
11-1/2 |
|
|
|
|
| ZNLAT28 |
2-1/16 |
12-1/4 |
|
|
|
|
| ZNLAT29 |
11 |
13 |
|
|
|
|
| ZNLAT30 |
11-3/4 |
13-3/4 |
|
|
|
|
| ZNLAT31 |
12-1/2 |
14-1/2 |
|
|
|
|
| ZNLAT32 |
1-3/4 |
16 |
|
|
|
|
| ZNLAT33 |
15-3/8 |
17-3/8 |
|
|
|
|
| ZNLAT34 |
18 |
20 |
|
|
|
|
| ZNLAT35 |
19-1/8 |
21-1/4 |
|
|
|
|
| ZNLAT36 |
22-7/8 |
24-7/8 |
|
|
|
|
|
 |
